Inline High Shear Mixer

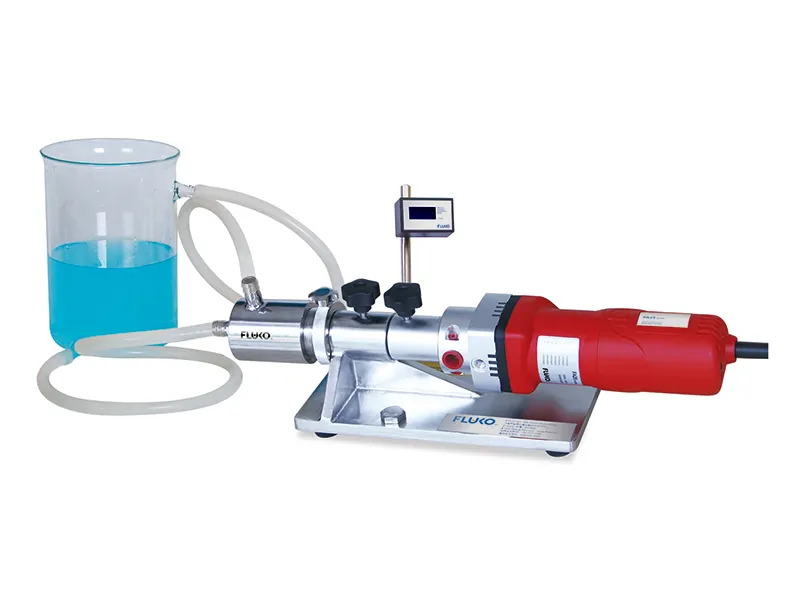

F22Z/F30Z/F40Z Inline High Shear Mixer

Laboratory in-line dispersing machine

F22Z/F30Z/F40Z

Laboratory in-line dispersing machine

This high shear mixer is equipped with a high-speed motor and features a unique rotor-stator structure that generates intense shear forces. It operates at high linear speeds to rapidly reduce particle size, ensuring finer material processing and more uniform dispersion. The inline high shear mixer is capable of simulating on-line circulation or continuous processing in a laboratory setting, offering efficient homogenization and dispersion eliminating the dead zones, ensuring that all parts of the mixture are equally processed without leaving any areas unmixed or under-processed.

Key Specifications

Motor power (W) 500-1800
Power supply 220V, 50/60Hz
Mixing capacity (H₂O) (ml) 1-30
Max. viscosity (cP) 1000

Request a Quote

Specifications

Model	F22Z/F22ZD	F30Z/F30ZD	F40Z/F40ZD
Motor power (W)	500	1050	1800
Power supply	220V, 50HZ	220V, 50/60HZ	220V, 50/60HZ
Mixing capacity (H₂O) (ml)	1-15	1-20	1-30
Max. viscosity (cP)	1000	1000	1000
Speed range (no-load) (rpm)	10000-28000	3000-25000	2500-23500
Speed display	Scale/Digital display	Scale/Digital display	Scale/Digital display
Speed control	Stepless	Stepless	Stepless
Medium-contact material	SS316L	SS316L	SS316L
Stirring shaft material	PTFE	PTFE	PTFE
Standard dispersing tool	20DG	25DG	40DG
Allowable ambient temperature (℃)	5 to 40	5 to 40	5 to 40
Allowable relative humidity (%)	80	80	80
Work frame/stand base	Standard	Standard	Standard
Dimensions (mm)	477×120×122	665×120×135	675×200×175
Weight (kg)	≤6	≤7	≤12
Packaging	Carton	Carton	Carton

Features

The mixer enables circulation and continuous processing for tasks such as dispersion, emulsification, homogenization, and mixing. It delivers high shear and uniform dispersion for precise material handling.
