All-in-One Dispersing & Mixing System | Laboratory Mixing

FLUKO ® FISCO All-in-One Dispersing & Mixing Reactor System

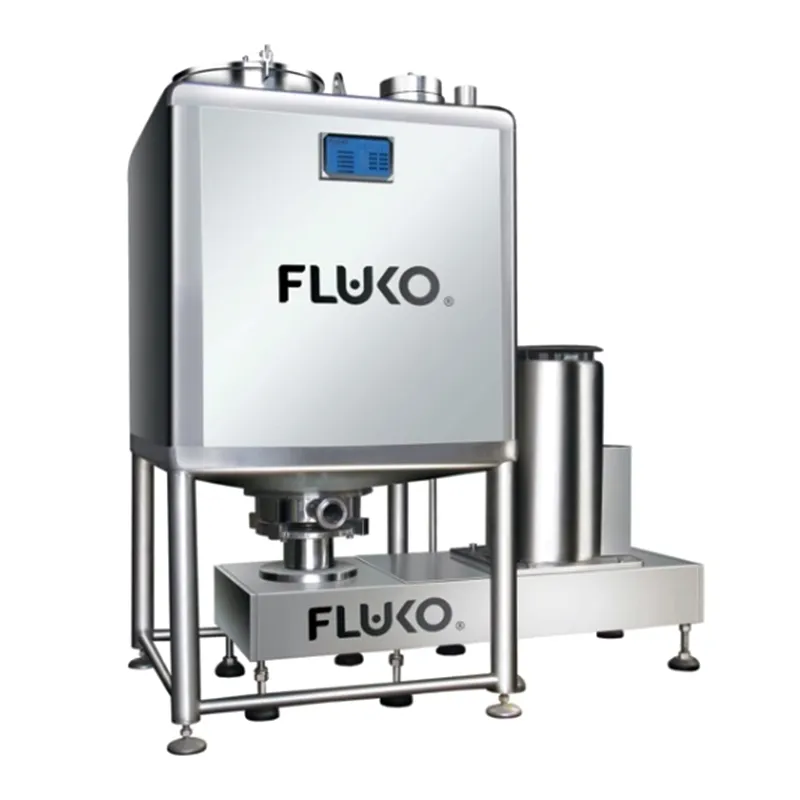

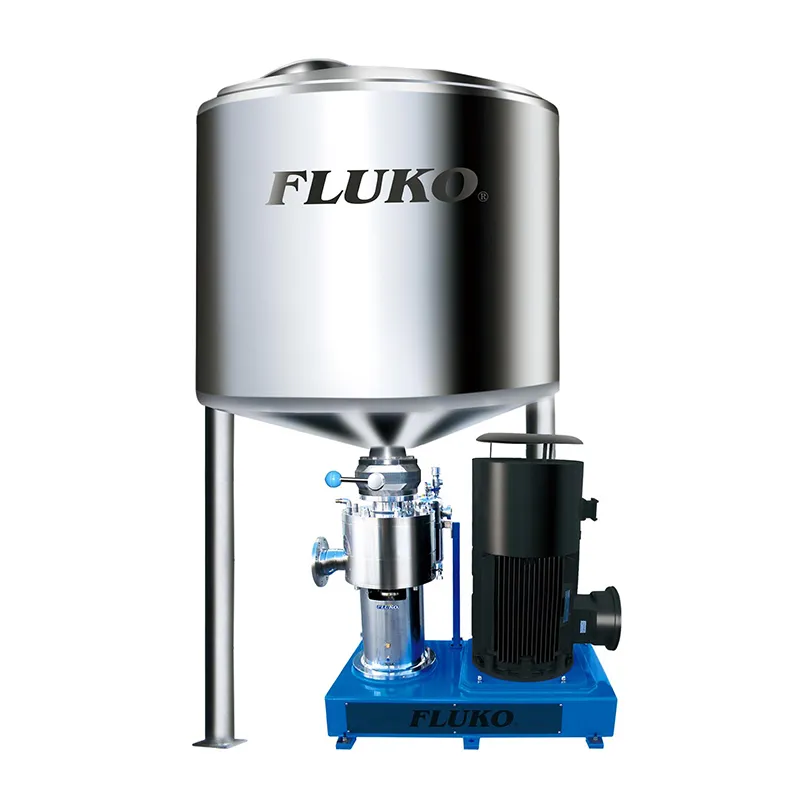

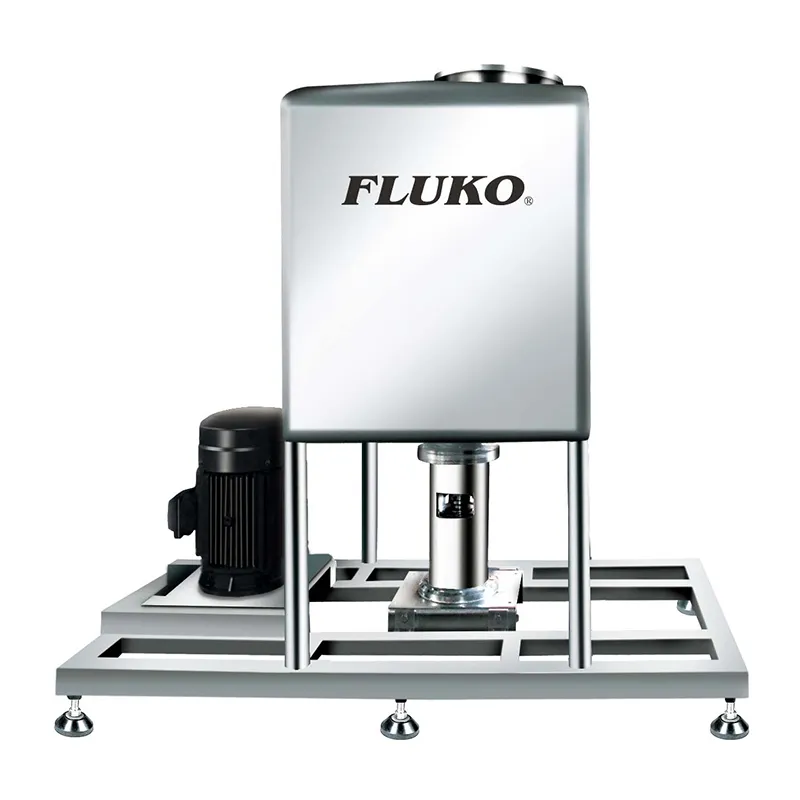

HMS High Speed Dispersing & Mixing System

HMS

High Speed Dispersing & Mixing System

for powder-liquid/solid-liquid mixing

The high-speed mixing system is designed for large-volume, rapid mixing of low-viscosity materials and can also be used for the quick dispersion of powders and solids into liquids. The interface of this dispersing system is compatible with various containers, ensuring that floating powders are quickly drawn into the high-shear zone at bottom, where they dissolve and disperse rapidly, significantly improving mixing efficiency. The system can be integrated with high, medium, and low-level sensors, making it ideal for automated, in-line dosing applications.

Applications

The high-speed dispersing & mixing system is suitable for batch operations involving dispersion and dissolution of soluble solids, gel formation, compounding, hydration, and slurry processing.

Specifications

Model	Power (kW)	Working capacity (m³)
HMS-0.5T	18.5	0.5
HMS-1T	22	1
HMS-2T	30	2
HMS-3T	45	3

Request a Quote

PDS

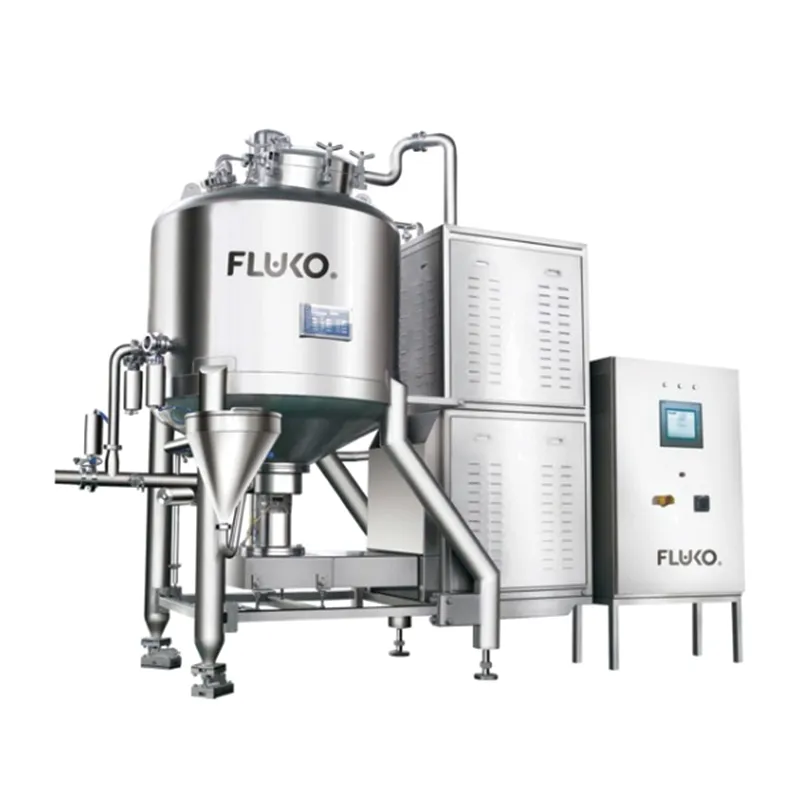

Automatic Dispersing & Mixing System

for powder-liquid mixing

The automatic dispersing & mixing system offers precise powder-to-liquid ratio feeding, ensuring consistent batch quality for large-scale powder-liquid mixing operations. Fully automated control streamlines the entire process of feeding to mixing, while reliable in-line cleaning (CIP) ensures hygiene and system efficiency throughout the powder-liquid mixing operation.

Specifications

Flow rate	10-20m³/h
Powder suction rate	200-350kg/min (whey powder)
	180-300kg/min (sugar)
	60-120kg/min (CMC)

Request a Quote

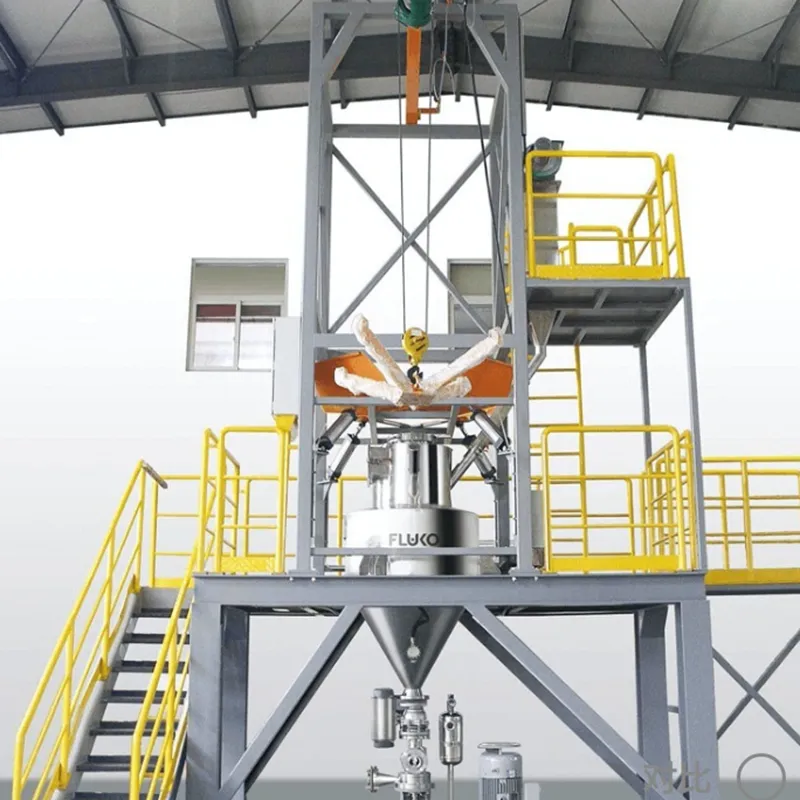

Dispersing & Mixing System

for solid-liquid mixing

This dispersing & mixing system integrates both bulk bag unloading and solid-liquid mixing systems, making it ideal for large-scale solid-liquid mixing and dispersion processes.

Features

This mixing system offers a range of features designed to optimize solid-liquid mixing processes. It ensures a dust-free operation, preventing the evaporation of volatile solvents and maintaining a cleaner working environment. It enables rapid powder dispersion, effectively avoiding clumping and agglomeration that maintains the consistency of the mixture while automated control system significantly contributes in enhancing the production efficiency. Additionally, the dispersion and mixing system is easily scalable, making it suitable for transitioning from laboratory or pilot projects to full-scale production. It integrates seamlessly into existing production modules, adhering to food and pharmaceutical manufacturing standards. It can also be customized with a full range of powder suction and mixing equipment to meet the specific material properties and process requirements.

Request a Quote

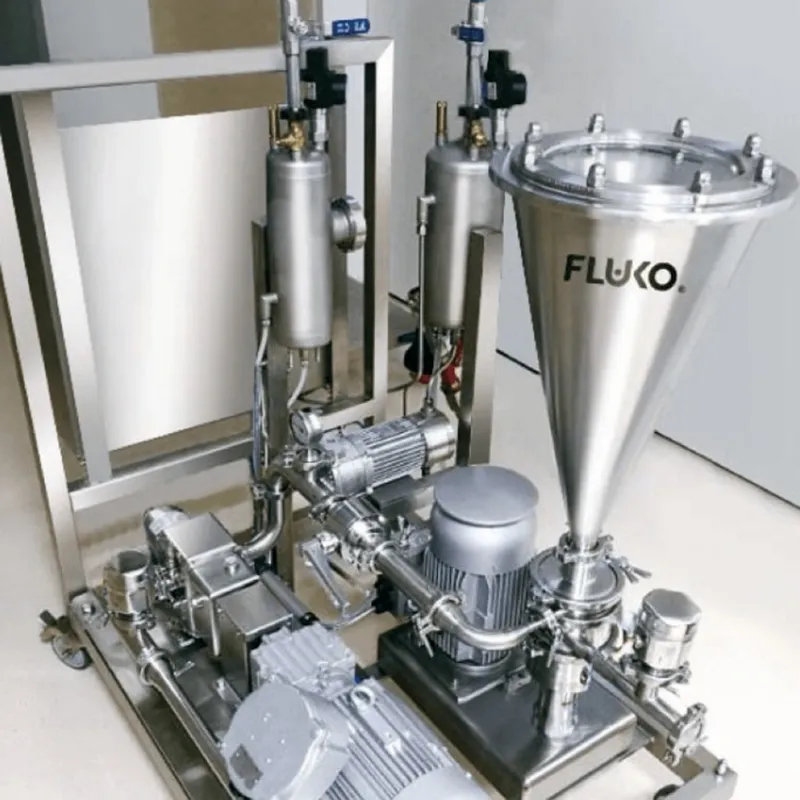

FPM

Dispersing & Mixing System

for liquid-liquid mixing

The dispersing & mixing system is designed for continuous mixing and dispersion of two or more liquid materials. The in-line disperser within the system ensures rapid and thorough mixing, while precise metering devices control the volume and ratio of raw materials fed into the system. Additionally, the materials remain separate before entering the homogenizer, reducing the likelihood of unwanted side reactions.

Request a Quote
