Powder Liquid Mixer

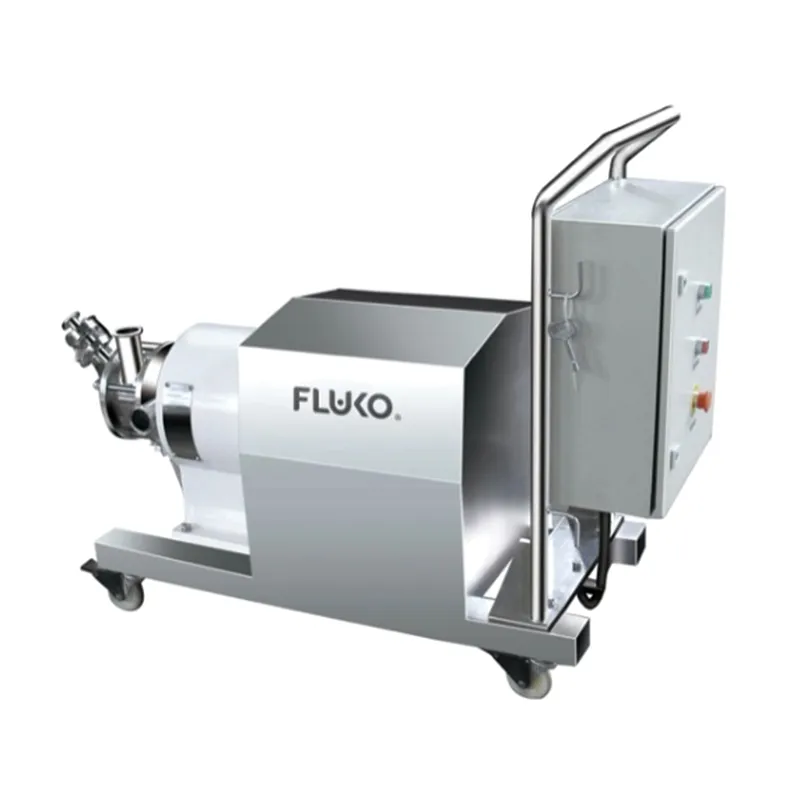

PD-X Powder Liquid Mixer

Solid-liquid mixing system for incorporating powders into liquids

PD-X

Solid-liquid mixing system for incorporating powders into liquids

This self-contained powder-liquid mixing equipment is designed to quickly and efficiently introduce powders through a feed tube. The powder liquid mixing system handles powder feeding, wetting, and complete, lump-free dispersion with ease, ensuring thorough mixing and preventing any agglomeration during the process.

Key Specifications

Power (kW) 45-55
Speed (rpm) 6000
Powder suction rate (suction hose) (kg/min) 3-50
Powder suction rate (hopper) (kg/min) 10-400

Request a Quote

Specifications

Model	PD50-X	PD110-X	PD130-X	PD190-X
Power (kW)	4-7.5	11-15	22-30	45-55
Speed (rpm)	6000	3000	3000	3000
Powder suction rate (suction hose) (kg/min)	1-2	1-10	2-20	3-50
Powder suction rate (hopper) (kg/min)	1-6	3-100	6-200	10-400
Max. viscosity (without pump) (cP)	2000	2000	4000	4000
Max. viscosity (with pump) (cP)	10000	10000	50000	100000
Inlet pressure (bar)	0.05-0.1	0.05-0.2	0.1-0.4	0.1-0.6
Max. outlet pressure (when sucking powder) (bar)	0.2	0.3	0.4	0.7
Max. outlet pressure (when not sucking powder) (bar)	1	2.5	3	4
Max. flow rate (when not sucking powder) (m³/h), H₂O	10	20	40	60
Max. flow rate (when sucking powder) (m³/h), H₂O	6	10	25	40
