FDC1/FDC3 Inline High Shear Dispersing Emulsifier

High shear emulsifier for dispersing, emulsifying and homogenizing

FDC1/FDC3

Inline High Shear Dispersing Emulsifier

High shear emulsifier for dispersing, emulsifying and homogenizing

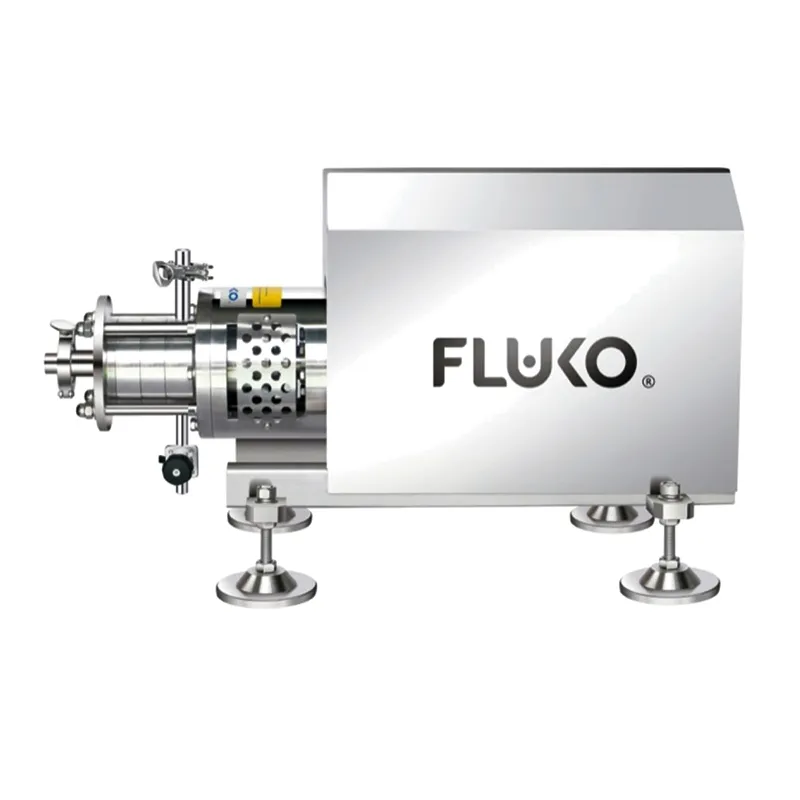

The FDC1 inline high shear dispersing emulsifier is ideal for lab-scale continuous processes such as dispersion, emulsification, and homogenization. It is equipped with a precision multitooth rotor-stator system housed in a compact, hygienic design. The speed is adjustable and shown on a display for optimal process control, providing accurate references for production-scale use.

This FDC3 inline high shear dispersing emulsifier features three sets of high-precision rotor-stators (coarse rotor-stator, medium rotor-stator, and fine rotor-stator) within the shear chamber, enabling a smooth transition from laboratory experiments to full-scale production. The interchangeable rotor-stator heads enable configuration based on experimental requirements, providing reliable insights for large-scale equipment selection. This emulsifying equipment also complies with hygienic standards and offers adjustable speed and process control display.

Request a Quote

Specifications

FDC1 Inline High Shear Dispersing Emulsifier

Model	FDC1/40	FDC1/60
Motor power (W)	750	1500
Power supply	220V,50Hz	220V,50Hz
Max. flow rate (H₂O) (L/min)	20	30
Speed range (rpm)	300-6000	300-6000
Max. operating temperature (℃)	120	120
Speed display	Digital display	Digital display
Speed control	Frequency control	Frequency control
Inverter	Standard	Standard
Medium-contact material	SS316L, FKM	SS316L, FKM
Standard working chamber	Stainless steel	Stainless steel
Standard agitator	4G / 1 stage	4G / 1 stage
Seal type	Mechanical seal	Mechanical seal
Inlet/outlet size	1”, 3/4” (clamp connection)	1”, 3/4” (clamp connection)
Operation mode	Inline processing	Inline processing
Dimensions (mm)	650×380×370	650×380×370
Protection grade of motor housing	IP54	IP54

FDC3 Inline High Shear Dispersing Emulsifier

Model	FDC3/40	FDC3/60
Motor power (W)	1500	2200
Power supply	220V, 50HZ	220V, 50HZ
Max. flow rate (H₂O) (L/min)	15	25
Speed range (rpm)	300-6000	300-6000
Max. operating temperature (℃)	120	120
Speed display	Digital display	Digital display
Speed control	Frequency control	Frequency control
Inverter	Standard	Standard
Medium-contact material	SS316L, FKM	SS316L, FKM
Standard working chamber	Stainless steel	Stainless steel
Standard agitator	4G/4M/4F/ 3 stages	4G/4M/4F/ 3 stages
Seal type	Mechanical seal	Mechanical seal
Inlet/outlet size	1”, 3/4” (clamp connection)	1”, 3/4” (clamp connection)
Operation mode	Inline processing	Inline processing
Dimensions (mm)	700×380×370	700×380×370
Protection grade of motor housing	IP54	IP54

Applications

These inline high shear dispersing emulsifiers are suitable for fine dispersion, homogenization, crushing, and mixing. They are widely used in hygiene-sensitive industries such as cosmetics, food, pharmaceuticals, and biotechnology.

Features

The inline design allows materials to be processed continuously as they move through the emulsifying system, with options for single-pass or multi-pass circulation for enhanced results.
