FISCO Laboratory Reactor

Lab reaction system for the optimization of dispersion, homogenization and mixing processes

FISCO Laboratory Reactor
FISCO

Laboratory Reactor

Lab reaction system for the optimization of dispersion, homogenization and mixing processes

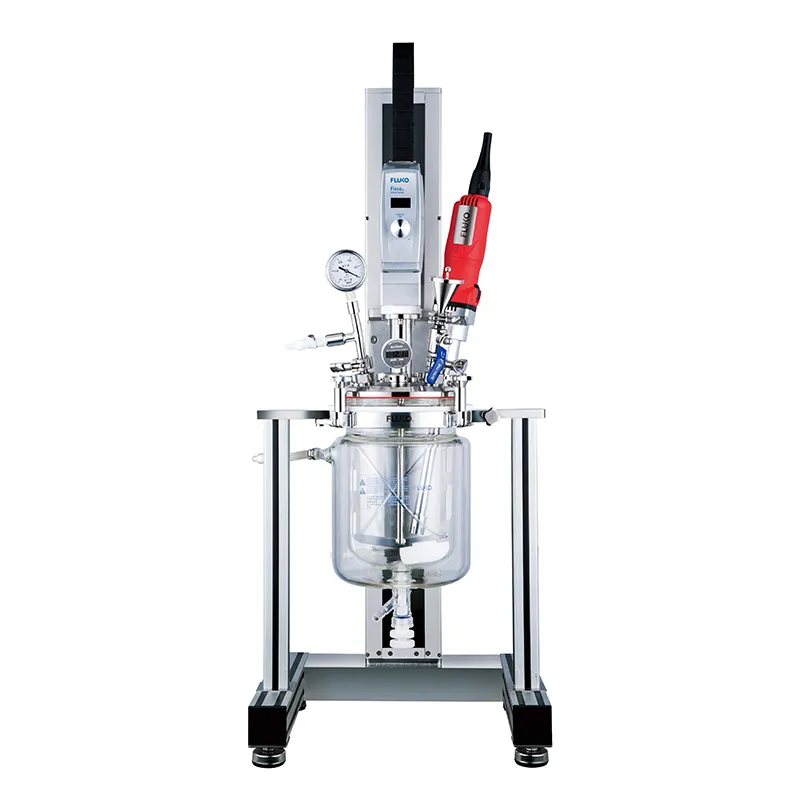

Laboratory reactors are used to optimize reactions and process flows in chemistry experiments. The FISCO laboratory reactor offers processing volumes of 0.5L, 1L, 2L, 5L, and more. It enables the execution of processes such as dispersion, emulsification, homogenization, mixing, and bottom discharge under vacuum or pressure conditions.

Key Specifications
  • Power supply 220V, 50HZ
  • Min. mixing capacity (ml) 300-1000
  • Min. emulsifying capacity (ml) 600-2000
  • Max. operating temperature (℃) 120
Request a Quote
Specifications
Model FISCO-1S FISCO-2S FISCO-5S
Power supply 220V, 50HZ 220V, 50HZ 220V, 50HZ
Min. mixing capacity (ml) 300 500 1000
Min. emulsifying capacity (ml) 600 1000 2000
Max. operating temperature (℃) 120 120 120
Max. vacuum (Mpa) -0.092 -0.092 -0.092
Max. viscosity (cP) 100,000 100,000 100,000
Mixer motor power (W) 50 50 50
Mixer speed range (rpm) 10-200 10-200 10-200
Standard mixer agitator Anchor ribbon agitator with scrapper Anchor ribbon agitator with scrapper Anchor ribbon agitator with scrapper
Scrapper material PTFE PTFE PTFE
Homogenizer motor power (W) 500 500 500
Homogenizer speed range (rpm) 10,000-28,000 10,000-28,000 10,000-28,000
Standard homogenizer dispersing tool 20DG 20DG 20DG
Openings on reactor cover Homogenizer opening, hopper opening, temperature gauge opening, vacuum opening, 3 spare openings Homogenizer opening, hopper opening, temperature gauge opening, vacuum opening, 3 spare openings Homogenizer opening, hopper opening, temperature gauge opening, vacuum opening, 3 spare openings
Lifting height (mm) 300 300 300
Medium-contact material SIC, SS316L, borosilicate glass, FKM, PTFE SIC, SS316L, borosilicate glass, FKM, PTFE SIC, SS316L, borosilicate glass, FKM, PTFE
Outer diameter of vacuum opening (mm) 10 10 10
Jacket inlet/outlet size (mm) 12 12 12
Allowable ambient temperature (℃) 5 to 40 5 to 40 5 to 40
Allowable relative humidity (%) 80 80 80
Dimensions (mm) 470×420×1200 470×420×1200 470×420×1200
Weight (kg) ≤35kg ≤37kg ≤42kg
Packaging Wooden case Wooden case Wooden case
Features

The lab reactor is equipped with various high-efficiency macro mixers and high-shear homogenizers and emulsifiers to handle a wide range of processes. Its operation system includes a reliable vacuum sealing system and precise temperature control to ensure optimal processing conditions. The multiple sensor detection systems allow the laboratory reactor to simulate industrial-scale production processes within a lab-setting environment.
