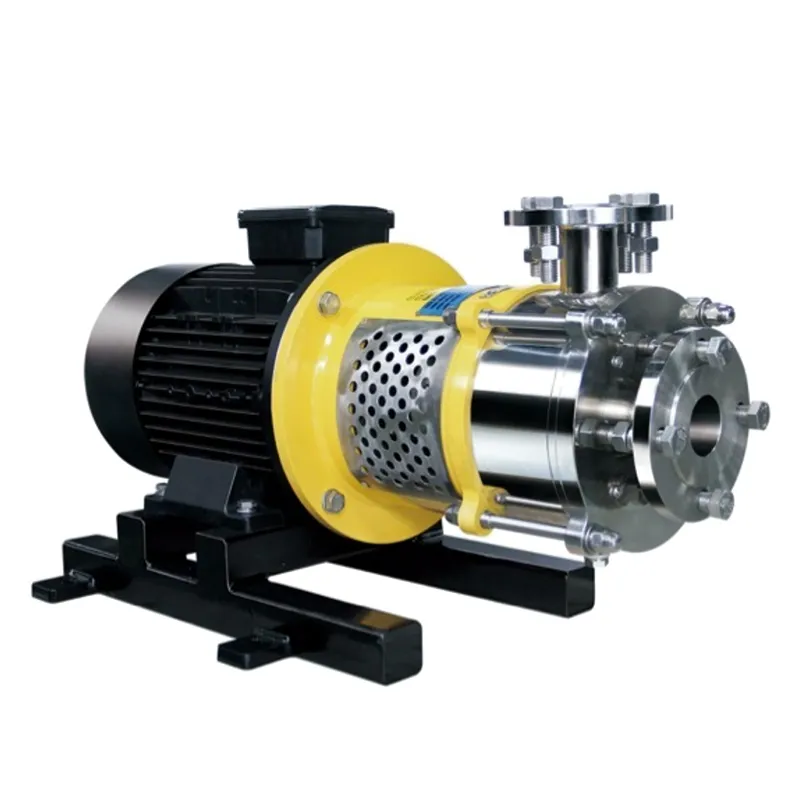

FCX1/FDX3 Inline High Shear Dispersing Emulsifier

High shear emulsifier for dispersing, emulsifying and homogenizing

FCX1/FDX3

Inline High Shear Dispersing Emulsifier

High shear emulsifier for dispersing, emulsifying and homogenizing

The single-stage and three-stage inline dispersing emulsifiers are high-efficiency lab mixing machines designed for continuous production or recirculation of fine materials. The shear chamber is equipped with one or multiple sets of high-precision multi-tooth rotor-stators. As the material passes through the rotor-stator system, it undergoes high-speed shearing, dispersing, emulsifying, and homogenizing, resulting in reduced particle size, uniform dispersion, and optimal emulsions.

Key Specifications

Rated power (kW) 0.75-110
Max. speed (rpm) 1000-6000
Inlet/outlet size (inch) 1, 3/4-8, 6
Max. flow rate (m³/h), H₂O 1-125

Request a Quote

Specifications

Model	Rated power (kW)	Max. speed (rpm)	Inlet/outlet size (inch)	Max. flow rate (m³/h), H₂O
FDX1/40	0.75	6000	1, 3/4	1
FDX1/60	1.5	6000	1, 3/4	2
FDX1/100	2.2	3000	1.5, 1.25	3
FDX1/140	5.5	3000	2, 1.5	6
FDX1/165	7.5	3000	2, 1.5	10
FDX1/180	11	3000	2.5, 2	15
FDX1/200	22	3000	2.5, 2	25
FDX1/210	37	3000	3, 2.5	35
FDX1/230	45	3000	4, 3	40
FDX1/245	55	1500	6, 5	60
FDX1/300	90	1500	6, 5	90
FDX1/380	110	1000	8, 6	125

Features

The inline system processes materials as they flow through the working chamber via pipelines. It offers both single-pass and multi-pass circulation options to achieve specific results, such as creating finely dispersed particles or fully homogenized mixtures.
