Batch High Shear Mixer

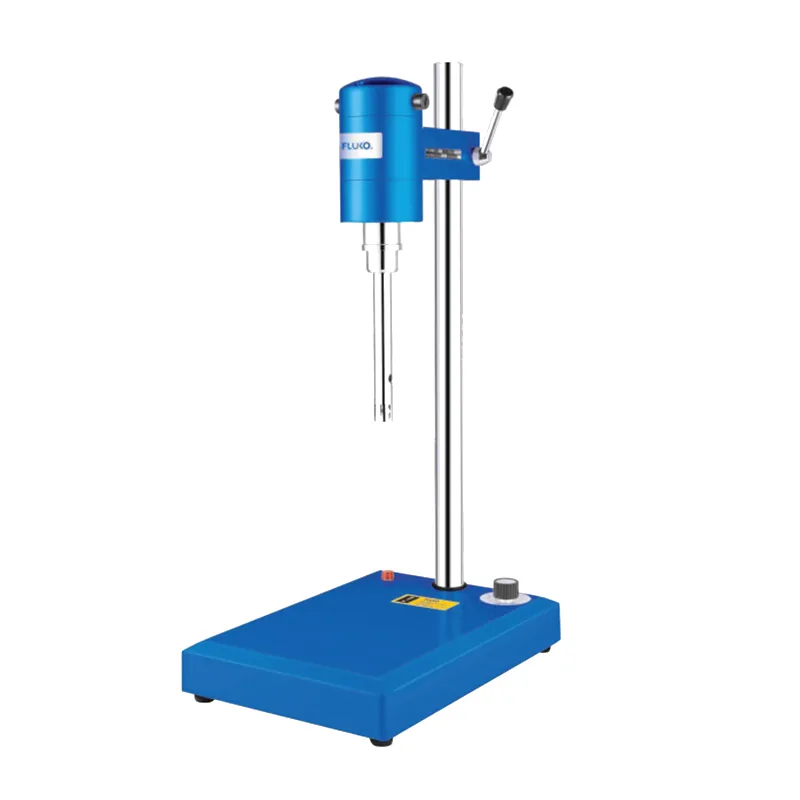

F18 Batch High Shear Mixer

Pilot scale mixer for emulsification, dispersion, homogenization, and liquid/liquid mixing

F18

Pilot scale mixer for emulsification, dispersion, homogenization, and liquid/liquid mixing

This batch high shear mixer features variable speed control and comes with two interchangeable homogenizing probes, allowing it to handle different processing volumes according to laboratory needs. It is ideal for emulsifying, dispersing, homogenizing, and mixing liquids in various applications.

Key Specifications

Motor power (W) 200
Power supply 220V, 50Hz
Mixing capacity (H₂O) (ml) 100-2000
Max. viscosity (cP) 8000

Request a Quote

Specifications

Model	F18
Motor power (W)	200
Power supply	220V, 50Hz
Mixing capacity (H₂O) (ml)	100-2000
Max. viscosity (cP)	8000
Speed range (rpm)	300-23000
Speed display	Scale
Speed control	Stepless
Medium-contact material	SS304

Stirring shaft material	PTFE
Standard dispersing tool	12G, 18G
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Operaiton mode	Batch processing
Work frame/stand base	Standard
Dimensions (mm)	225×328×600
Weight (kg)	≤9

Features

The high shear mixer is capable of reaching speeds up to 23,000 RPM, providing powerful mixing performance. It is also compatible with different dispersing tools to accommodate varying processing tasks.
