Electric Overhead Stirrer

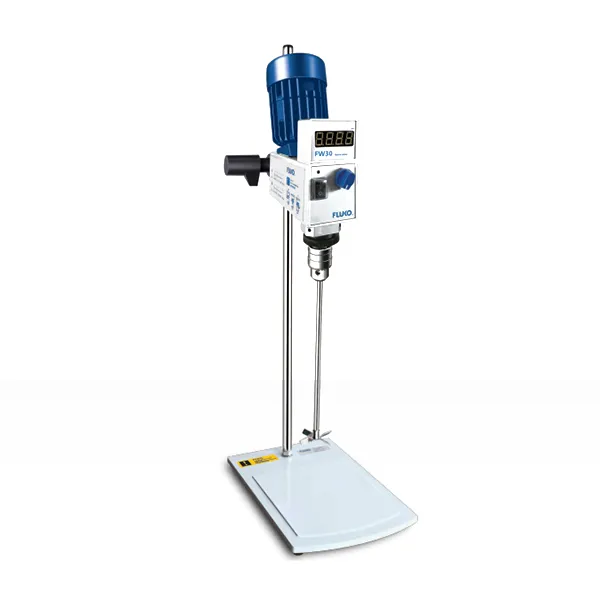

FW30 Electric Overhead Stirrer

Laboratory stirrer for mixing liquids of varying viscosity

FW30

Laboratory stirrer for mixing liquids of varying viscosity

This electric overhead stirrer features a digital stepless speed control, offering high-speed and convenient operation with digital display of running speed for enhanced safety and reliability. It also has a low-noise mechanical reduction structure, compact size, high output torque, powerful mechanical stirring, automatic torque compensation, constant speed output, and digital speed display. It is able to operate continuously for extended periods, withstanding several hundred hours of uninterrupted use.

Key Specifications

Motor power (W) 120
Power supply 220V, 50Hz
Stirring capacity (H₂O) (ml) 50-20000
Max. viscosity (cP) 50000

Request a Quote

Specifications

Model	FW30
Motor power (W)	120
Power supply	220V,50Hz
Stirring capacity (H₂O) (ml)	50-20000
Max. viscosity (cP)	50000
Speed range (rpm)	60-500 (Level I)
Speed range (rpm)	240-2000 (Level Ⅱ)
Speed display	Four-digit LCD display
Max. torque at stirring shaft (N.cm)	150
Medium-contact material	SS316L
Overheat protection	Yes (70℃)

Standard stirring agitator	4-blade impeller
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Agitator clamping method	Clamping chuck
Chuck clamping diameter range (mm)	0.5-10
Work frame/stand base	Standard
Operaiton mode	Batch processing
Dimensions (mm)	215×310×730
Weight (kg)	≤ 9
Packaging	Carton

Features

Overload protection and motor protection ensure safe operation and laboratory safety.
Equipped with an imported self-locking chuck for easy and quick operation, with a locking function to prevent the stirrer rod from loosening and ensuring high axial alignment.
Features sir bar penetration hole that allows for easy replacement by simply adjusting the height of the stirrer paddle without the need to move the stirrer head up or down.

Applicable

This laboratory equipment is ideal for dispersion, stirring, and other mixing processes involving fluids of varying viscosity. It is commonly used in research institutions, chemical industries, pharmaceutical companies, and medical facilities.
