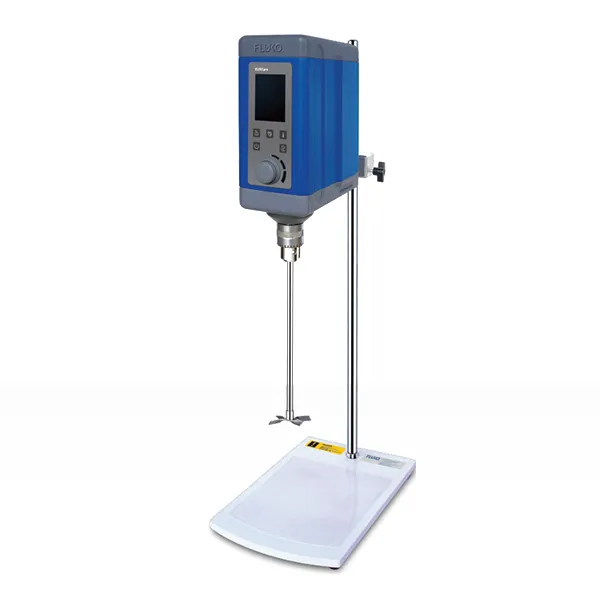

EU30 pro/EU50 pro/EU70 pro/EU110 pro Multifunctional Electric Overhead Stirrer

Laboratory stirrer for mixing liquids of varying viscosity

EU30 pro/EU50 pro/EU70 pro/EU110 pro Multifunctional Electric Overhead Stirrer
EU30 pro/EU50 pro/EU70 pro/EU110 pro

Multifunctional Electric Overhead Stirrer

Laboratory stirrer for mixing liquids of varying viscosity

The multifunctional electric stirrers are ideal for laboratory applications involving fluids of different viscosities. These electric overhead stirrers feature advanced brushless motors and control chips, providing powerful stirring, timed control, speed memory with automatic adjustment, dynamic torque-speed curve display, temperature measurement and display, and torque compensation. The intuitive touch buttons and one-touch dial make operation simple but efficient. It offers compatibility with host computers and data connectivity, allowing seamless integration into modular systems for further flexibility and efficiency.

Key Specifications
  • Motor power (W) 100-210
  • Power supply 200-240V,50/60 Hz
  • Max. stirring capacity (H₂O) (L) 20-100
  • Max. viscosity (cP) 20000-80000
Request a Quote
Key Parts

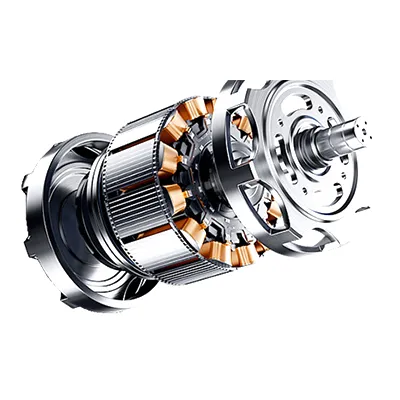

Brushless DC Motor
Brushless DC Motor
The brushless DC motor offers high torque for more powerful performance, with a long lifespan and low noise level operation.

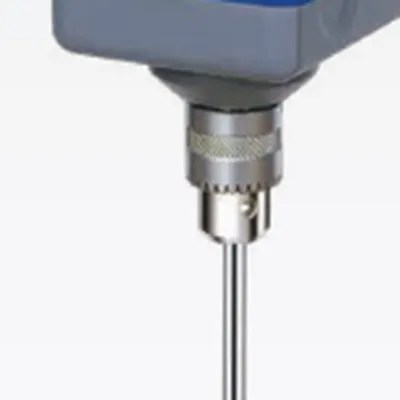

Clamping Chuck
Clamping Chuck
The clamping chuck features a self-tightening function, increasing clamping force in sync with torque during operation to prevent slippage of the agitator.

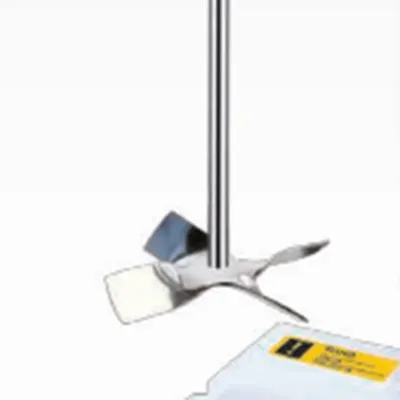

Agitator
Agitator
The agitator is made of high-quality stainless steel, coated with PTFE (polytetrafluoroethylene) for enhanced corrosion resistance and durability.
Specifications
Model EU30pro EU50pro EU70pro EU110pro
Motor power (W) 100 150 205 210
Power supply 200-240V,50/60 Hz 200-240V,50/60 Hz 200-240V,50/60 Hz 200-240V,50/60 Hz
Max. stirring capacity (H₂O) (L) 20 30 50 100
Max. viscosity (cP) 20000 40000 60000 80000
Speed range (rpm) 30-2000 30-2000 30-2000 30-1300
Time setting range 0-6000 min 0-6000 min 0-6000 min 0-6000 min
Speed memory Yes Yes Yes Yes
Speed control Stepless speed regulation Stepless speed regulation Stepless speed regulation Stepless speed regulation
Speed adjustment accuracy (rpm) 1 1 1 1
Speed display Digital display Digital display Digital display Digital display
Max. output torque (N.cm) 30 50 50 110
Stirring rod length Adjustable Adjustable Adjustable Adjustable
Standard stirring agitator 4-blade impeller 4-blade impeller 4-blade impeller 4-blade impeller
Agitator material SS316L SS316L SS316L SS316L
Agitator clamping method Clamping chuck Clamping chuck Clamping chuck Clamping chuck
Chuck clamping diameter range (mm) 0.5-10 0.5-10 0.5-10 0.5-10
Forward and reverse rotation Yes Yes Yes Yes
Lock button Yes Yes Yes Yes
Button dynamic monitoring and display Yes Yes Yes Yes
Speed dynamic monitoring and display Yes Yes Yes Yes
Data connection Yes (software EU control is optional) Yes (software EU control is optional) Yes (software EU control is optional) Yes (software EU control is optional)
Intermittent control Yes (software EU control is optional) Yes (software EU control is optional) Yes (software EU control is optional) Yes (software EU control is optional)
Tilt protection Yes (automatc switch-off when tilting at 30 degrees) Yes (automatc switch-off when tilting at 30 degrees) Yes (automatc switch-off when tilting at 30 degrees) Yes (automatc switch-off when tilting at 30 degrees)
Temperature measurement function Yes Yes Yes Yes
External temperature sensor PT1000 (optional) PT1000 (optional) PT1000 (optional) PT1000 (optional)
Temperature measurement range (℃) -50 to 400 -50 to 400 -50 to 400 -50 to 400
Temperature measurement accuracy (℃) 0.15+0.002 |t| 0.15+0.002 |t| 0.15+0.002 |t| 0.15+0.002 |t|
Temperature display Yes Yes Yes Yes
Overheat protection Yes (75℃) Yes (75℃) Yes (75℃) Yes (75℃)
Allowable ambient temperature (℃) 5 to 40 5 to 40 5 to 40 5 to 40
Allowable relative humidity (%) 80 80 80 80
Work frame/stand base Standard Standard Standard Standard
Protection grade IP30 IP30 IP30 IP30
Communication interface DB-9/USB-Type C DB-9/USB-Type C DB-9/USB-Type C DB-9/USB-Type C
Housing material Aluminium alloy Aluminium alloy Aluminium alloy Aluminium alloy
Dimensions (mm) 220×350×720 220×350×720 220×350×720 220×350×720
Weight (kg) ≤ 5.9 kg ≤ 5.9 kg ≤ 5.9 kg ≤ 5.9 kg
Packaging Carton Carton Carton Carton
Features

Includes numerous versatile features such as timed control, forward and reverse rotation, speed memory, torque display, temperature measurement, data output for real-time tracking, data linkage and connectivity for system integration, etc.

  • Excellent performance
    EU30 Pro: Maximum capacity of 20L, maximum output torque of 30 N·cm
    EU50 Pro: Maximum capacity of 30L, maximum output torque of 50 N·cm
    EU70 Pro: Maximum capacity of 50L, maximum output torque of 70 N·cm
    EU110 Pro: Maximum capacity of 100L, maximum output torque of 110 N·cm
  • Safety and reliability
    The motor is equipped with overheat protection, overload protection, and tilt shutdown protection. The stirrer operates with low noise level, is programmable, and includes penetration type stirring shaft for easy adjustments.
  • Customizable stirring blades
    A wide range of stirring paddles is available to choose from to match different viscosities and operating conditions.
  • Advanced connectivity
    Optional integration with modular systems and data linkage capabilities, allowing the stirrer to be easily incorporated into modular systems and meet diverse R&D needs.
