Handheld Homogenizer

F8 Handheld Homogenizer

Laboratory portable rotor-stator homogenizer for dispersion, emulsification and homogenization

Laboratory portable rotor-stator homogenizer for dispersion, emulsification and homogenization

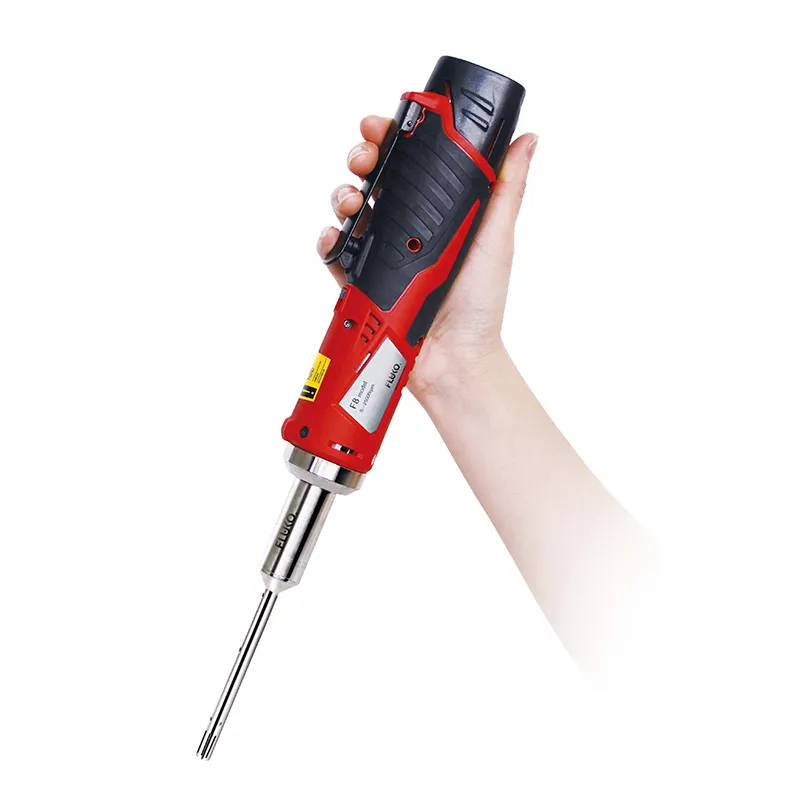

This is a portable laboratory homogenizer equipped with a high-speed motor (lithium battery-powered) and precision probes. It also includes other essential accessories such as medical scissors, tissue forceps, pipettes, centrifuge tubes, and sampling bottles. This handheld homogenizer is ideal for tasks like animal and plant tissue disruption, homogenization, medical diagnostics, micro-dispersion emulsification, etc.

Key Specifications

Charger input voltage 220-240V, 50-60 Hz
Charger outputvoltage 12V DC, 3A
Capacity of lithium battery (Ah) 2
Mixing capacity (H₂O) (ml) 0.1-60

Request a Quote

Specifications

Model	F8
Power supply	12V DC rechargeable lithium battery
Charger input voltage	220-240V, 50-60 Hz
Charger outputvoltage	12V DC, 3A
Capacity of lithium battery (Ah)	2
Mixing capacity (H₂O) (ml)	0.1-60
Max. viscosity (cP)	100
Charge time (h)	≤1
Continuous working time (h)	≤1h (H₂O)
Speed range (rpm)	0-25000
Speed control	Stepless speed regulation
Indicator light	Yes
Medium-contact material	SS316L

Stirring shaft material	PTFE
Standard dispersing tool	6GZL-1, 8GZL-1
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Operaiton mode	Micro batch processing
Stand/charger/spare lithium battery	Standard
Homogenizer dimensions (with dispersing tool) (mm)	375×65×50
Carrying case dimensions (mm)	475×400×150
Homogenizer weight (with dispersing tool) (kg)	≤1
Packaging weight (kg)	≤6.5

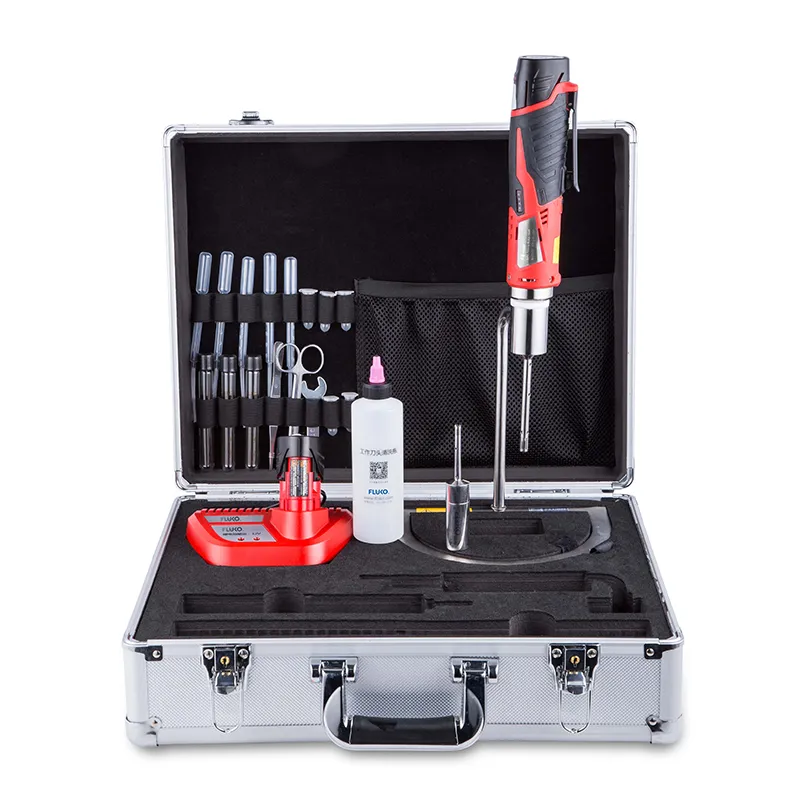

Packaging	Aluminum carrying case

Working Principle

The handheld homogenizer works by drawing liquid samples into the generator probe equipped with a rotor that can spin at different speeds. The sample is then pushed through slots in the stator, creating mechanical shear. As the sample is repeatedly drawn in and forced through the stator, going through the shear process multiple times, resulting in complete homogenization into a uniform mixture within 30 seconds or less for most samples.

Features

The homogenizer is equipped with a high-quality stainless steel dispersing head and a high-efficiency motor. Its height and angle are also adjustable for versatile use in outdoor or laboratory operations.

Applicable

The handheld homogenizer is suitable for a wide range of applications, including biopharmaceuticals, genetic research, tissue disruption, cell lysis, pathological analysis, oil-water emulsification, nano-material dispersion, dairy homogenization, polymerization, cosmetics, fine chemicals, pesticides, mineral exploration, environmental protection, etc.
