Powder Liquid Mixer

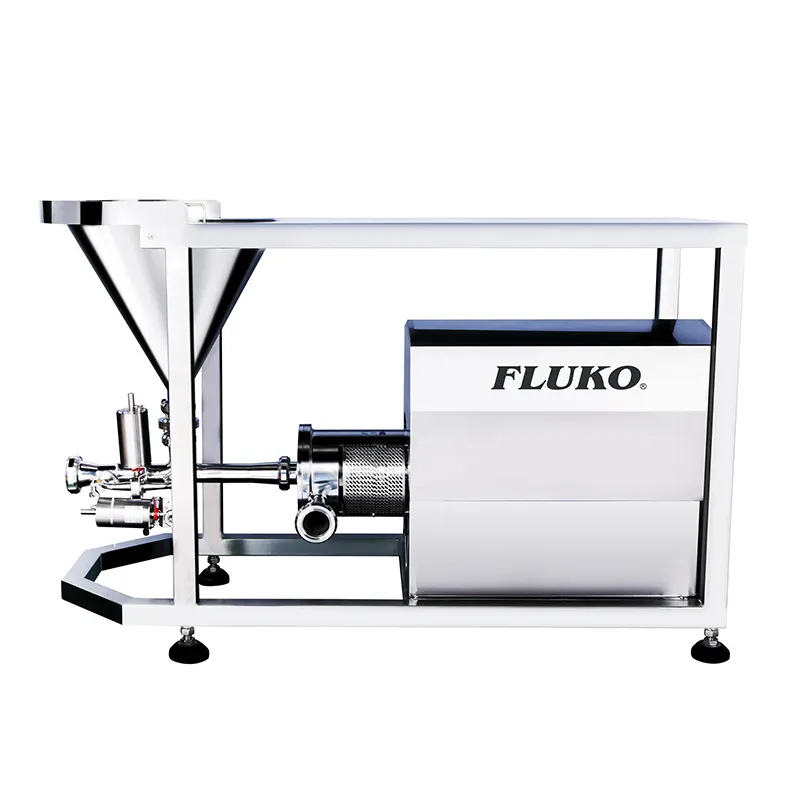

PD-VT Powder Liquid Mixer

Solid-liquid mixing system for large-volume dispersion of powders into liquids

PD-VT

Solid-liquid mixing system for large-volume dispersion of powders into liquids

This self-contained powder-liquid mixing equipment is designed to handle large volumes of powder dispersion. The mixing system feeds powders to the mixing chamber through a hopper feed and ensures rapid feeding, wetting, and thorough dispersion without any agglomeration, making it ideal for large-scale powder-liquid mixing operations.

Key Specifications

Power (kW) 45-55
Speed (rpm) 6000
Powder suction rate (suction hose) (kg/min) 3-50
Powder suction rate (hopper) (kg/min) 10-400

Request a Quote

Specifications

Model	Rated power (kW)	Centrifugal pump power (kW)	Inlet/outlet size (inch)	Max. flow rate (m³/h), H₂O	Max. powder suction rate (kg/min)
PD30-VT	2.2	4	2.5/1.25	8	18
PD50-VT	7.5-11	4-5.5	2.5/2	16	25
PD80-VT	15-22	4-5.5	2.5/2.5	25	80
PD100-VT	22-30	5.5-7.5	2.5/2.5	30	100
PD120-VT	30-37	7.5	2.5/3	30	120
PD140-VT	30-45	7.5	3/3.5	40	120
PD165-VT	37-55	15	3.5/3.5	50	200
PD200-VT	55-75	18.5	4/4	80	300
