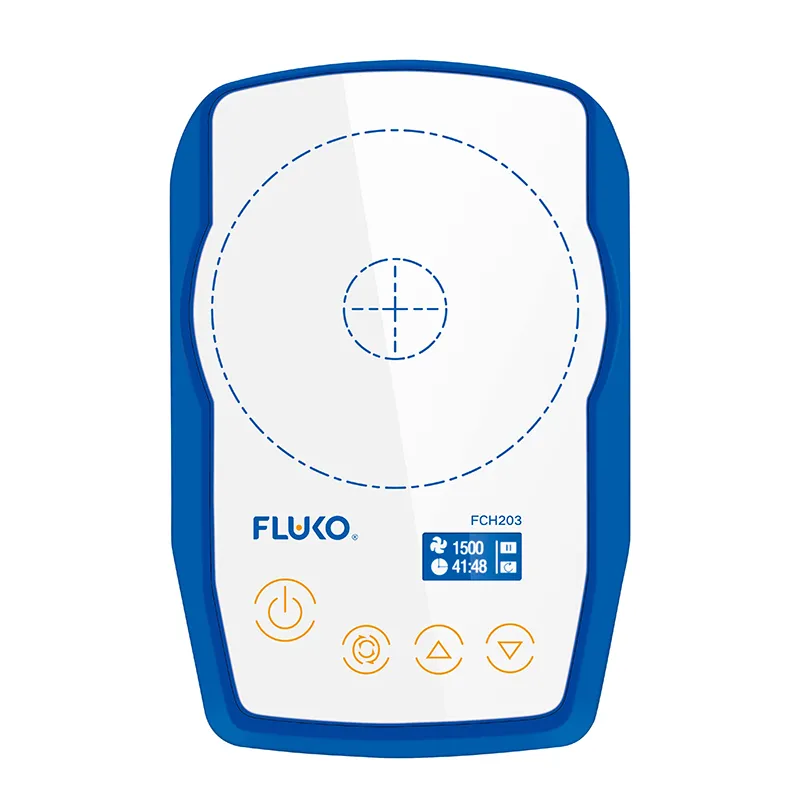

FCH203 Magnetic Stirrer

Compact magnetic stir plate for mixing and stirring small volume of low viscosity fluid materials

FCH203

Magnetic Stirrer

Compact magnetic stir plate for mixing and stirring small volume of low viscosity fluid materials

Our compact magnetic stir plate is designed for mixing and stirring small volumes of low-viscosity fluids. This next-generation mini magnetic stirrer features an ultra-thin design and forward-reverse stirring function, making benchtop laboratory mixing more efficient. It significantly reduces rotational instability during speed changes, ensuring optimal stirring performance every time.

Key Specifications

Heating plate size (mm) Ø100
Max. stirring capacity (H₂O) (ml) 1000
Input/output power (W) 6/3
Speed range (rpm) 15-1500

Request a Quote

Specifications

Model	FCH203
Heating plate size (mm)	Ø100
Max. stirring capacity (H₂O) (ml)	1000
Input/output power (W)	6/3
Speed range (rpm)	15-1500
Min. speed adjustment (rpm)	10
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Magnetic stirrer bar dimensions (mm)	Ø7×25

Controller	Touch switch
Display	OLED
Forward and reverse rotation	Yes
Plate material	Tempered glass
Body material	Plastic
Dimensions (W×D×H) (mm)	117×180×12
Weight (kg)	0.30
Protection grade	IP65
Power supply	1phase AC100-240V,50/60Hz

Working Principle

The stirrer operates on the principle of magnetic fields, where like poles repel and opposite poles attract. The magnetic field drives a magnetized stir bar placed inside the container to rotate in a circular motion.

Applicable

This magnetic stirrer is ideal for routine stirring tasks in general research, life sciences, industrial applications, quality analysis, and clinical laboratory settings.

Features

Adjustable speed control
Corrosion resistance
Space-saving compact design
Low noise level operation with minimal vibration
