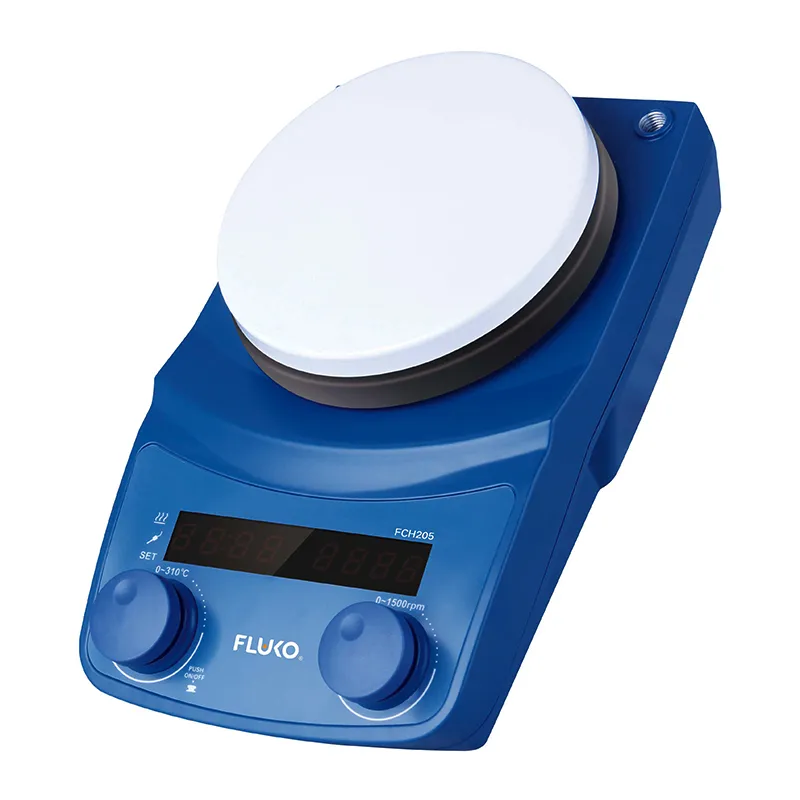

FCH205 Magnetic Stirrer

Laboratory magnetic stirrer with heating for mixing and stirring low-viscosity fluid materials

FCH205

Laboratory magnetic stirrer with heating for mixing and stirring low-viscosity fluid materials

This popular laboratory magnetic stirrer features one-touch dial control, a ceramic top plate, precise heating, a clear digital display, and accurate temperature measurement, making it ideal for various low-viscosity fluid mixing and stirring.

Key Specifications

Heating plate size (mm) Ø135
Max. stirring capacity (H₂O) (ml) 5000
Input/output power (W) 30/20
Speed range (rpm) 50-1500

Request a Quote

Specifications

Model	FCH205
Heating plate size (mm)	Ø135
Max. stirring capacity (H₂O) (ml)	5000
Input/output power (W)	30/20
Speed range (rpm)	50-1500
Min. speed adjustment (rpm)	10
Heating temperature range (℃)	RT-310
Heating temperature accuracy	±1
Temperature display accuracy (℃)	±0.1
Min. temperature adjustment (℃)	±1
Heating output power (W)	600
Temperature sensor	PT1000
Allowable ambient temperature (℃)	+5 to 40

Allowable relative humidity (%)	80
Magnetic stirrer bar dimensions (mm)	Ø8×40
Controller	Digital feedback controller with Jog-Shuttle Switch (Turn+Push)
Display	LED
Stand for temperature sensor	Yes
Plate material	Aluminium alloy with ceramic coating
Body material	Aluminium alloy
Dimensions (W×D×H) (mm)	250×158×92
Weight (kg)	1.90
Protection grade	IP42
Power supply	1phase AC 200-240V,50/60Hz

Working Principle

The magnetic stirrer operates by utilizing the principle of magnetic fields, where like poles repel and opposite poles attract. The magnetic field drives a magnetized stir bar placed in the container, causing it to rotate in a circular motion. This process is engineered to provide strong magnetic coupling, ensuring excellent uniformity in mixing.

Features

Adjustable speed control
Motorless design, eliminating the need for motor bearings
Pollution-free operation
