Batch High Shear Mixer

FM300 Batch High Shear Mixer

Pilot scale mixer for small scale dispersing, emulsifying and homogenizing in pilot plants

FM300

Pilot scale mixer for small scale dispersing, emulsifying and homogenizing in pilot plants

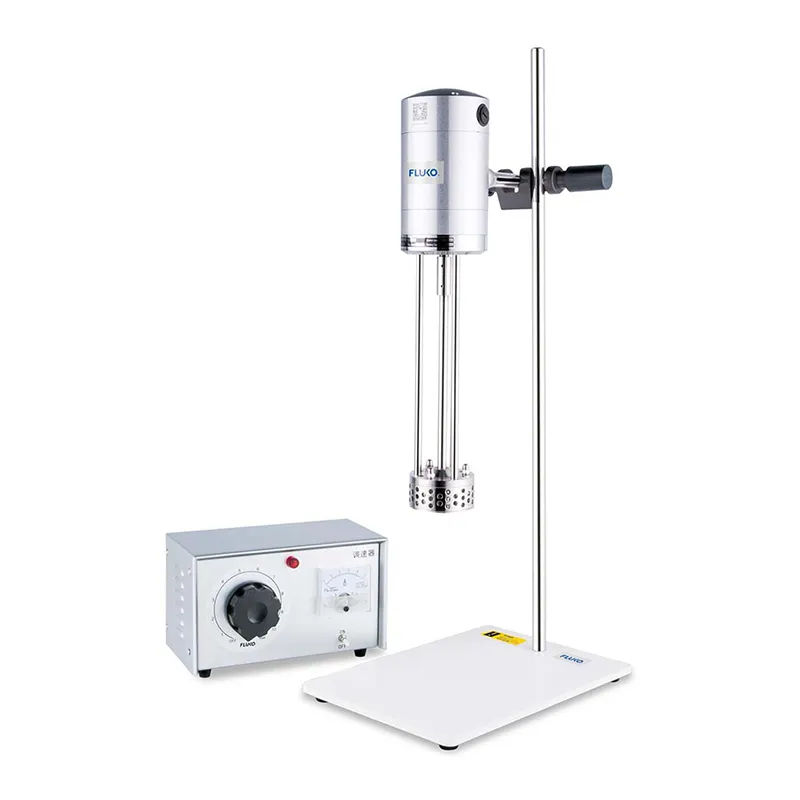

This batch high shear mixer is equipped with a high-performance motor that delivers strong torque output and precise speed display. It features three different stators, making it suitable for processing small batches of high-temperature and medium-to-high viscosity materials in laboratory settings. It is ideal for dispersion, homogenization, and emulsification tasks.

Key Specifications

Motor power (W) 300
Power supply 220V, 50Hz
Mixing capacity (H₂O) (ml) 200-10000
Max. viscosity (cP) 5000

Request a Quote

Specifications

Model	FM300
Motor power (W)	300
Power supply	220V, 50Hz
Mixing capacity (H₂O) (ml)	200-10000
Max. viscosity (cP)	5000
Speed range (rpm)	300-11000
Speed display	Scale
Speed control	Stepless
Medium-contact material	SS304

Stirring shaft material	Copper alloy
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Operaiton mode	Batch processing
Work frame/stand base	Standard

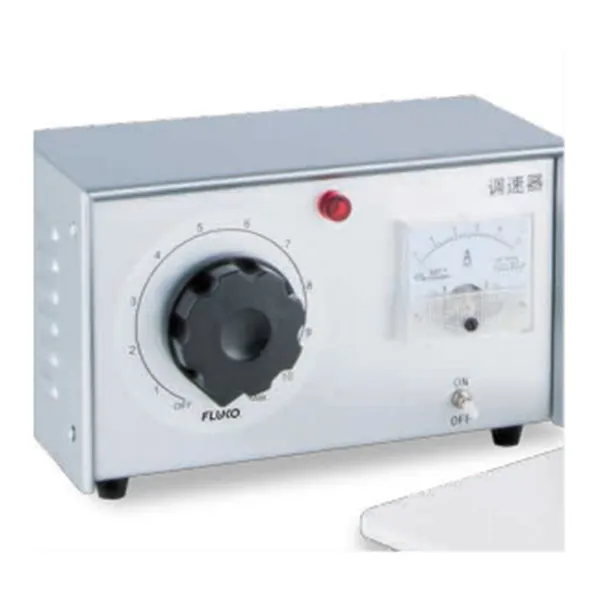

Independent speed controller	Standard
Dimensions (mm)	215×310×700
Weight (kg)	≤13
Packaging	Carton

Features

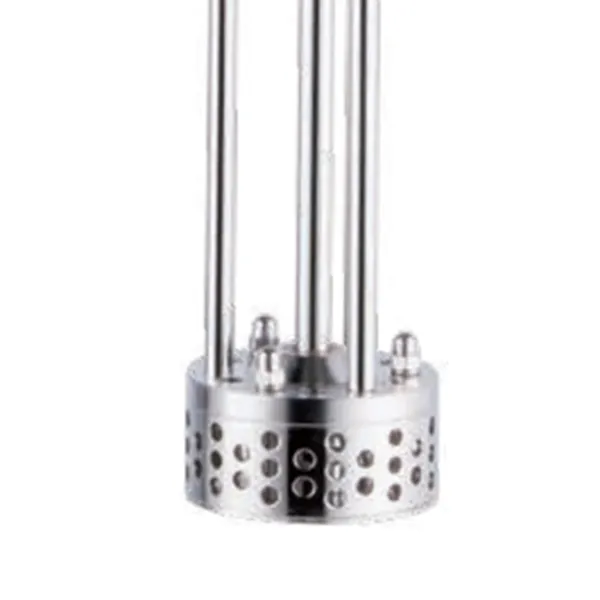

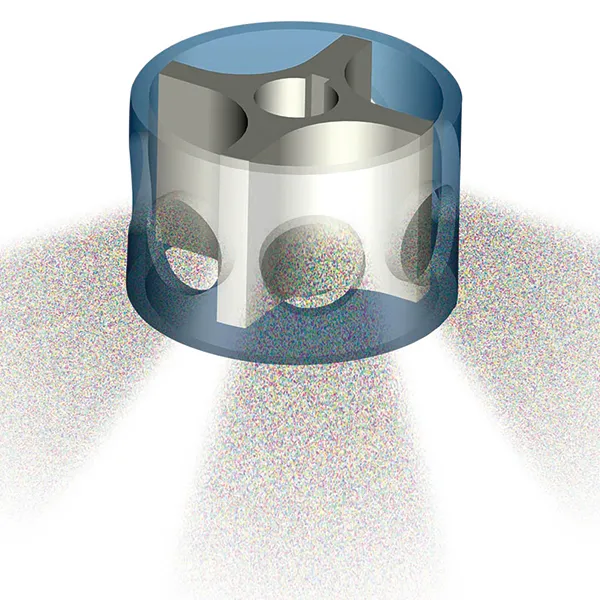

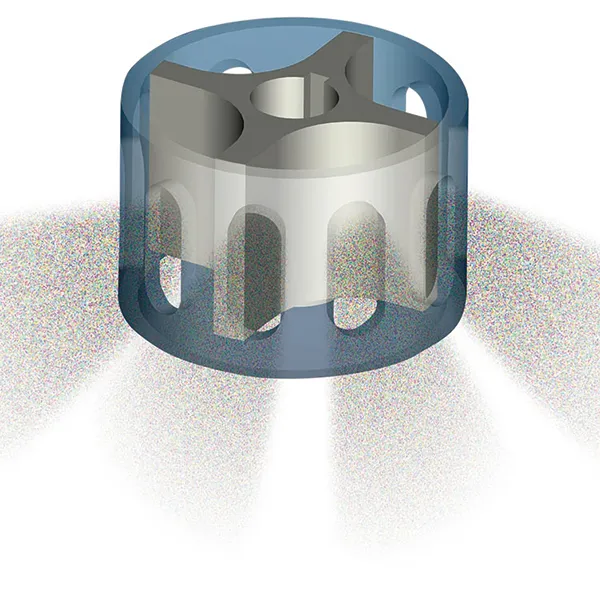

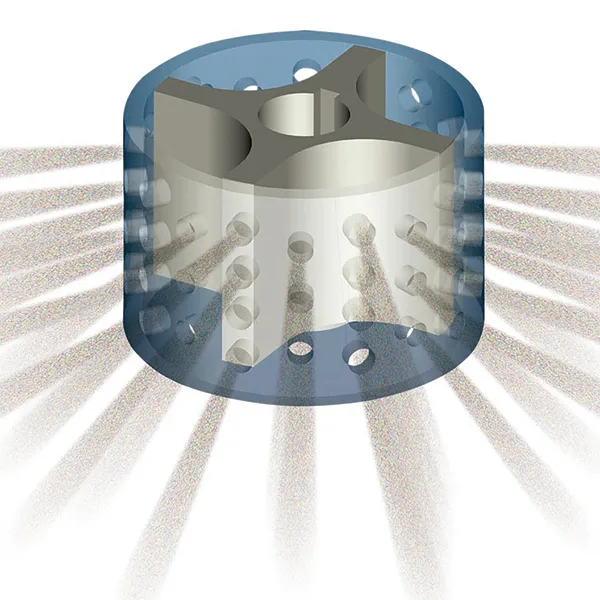

The high shear mixer is capable of processing high-temperature materials and includes three different stators to accommodate various processing needs.
