Batch High Shear Mixer

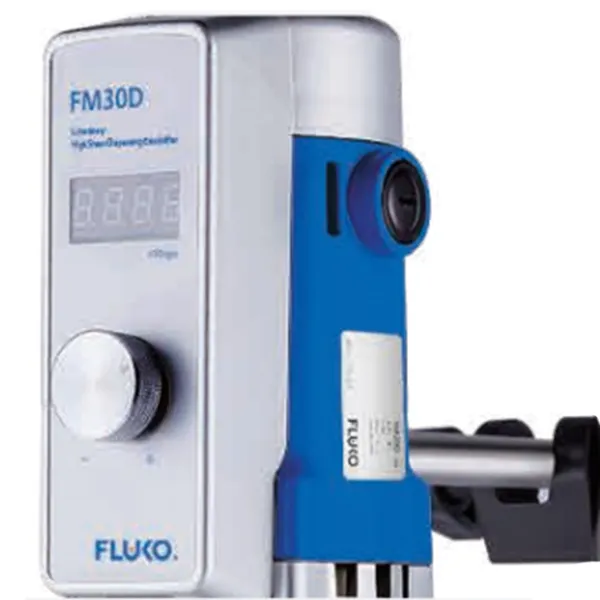

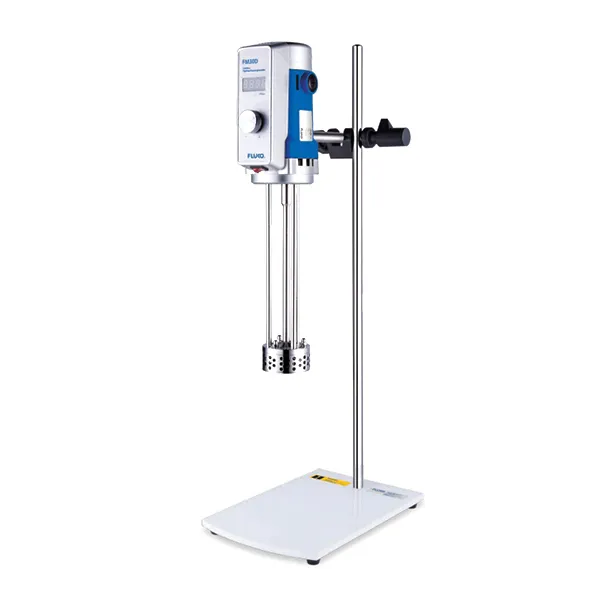

FM30D Batch High Shear Mixer

Pilot scale mixer for dispersing, emulsifying and homogenizing of medium viscosity materials

FM30D

Pilot scale mixer for dispersing, emulsifying and homogenizing of medium viscosity materials

This batch high shear mixer offers multiple mixing functions such as high-shear mixing, dispersing, emulsifying, and homogenizing. It is ideal for handling medium viscosity materials as well as solid-liquid mixtures.

Key Specifications

Motor power (W) 500
Power supply 220V, 50Hz
Mixing capacity (H₂O) (ml) 200-10000
Max. viscosity (cP) 5000

Request a Quote

Specifications

Model	FM30D
Motor power (W)	500
Power supply	220V, 50Hz
Mixing capacity (H₂O) (ml)	200-10000
Max. viscosity (cP)	5000
Speed range (rpm)	2000-14000
Speed display	Digital display
Speed control	Stepless

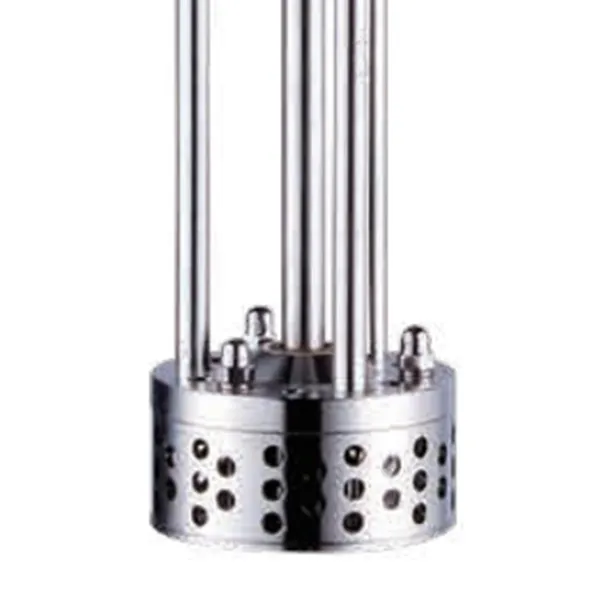

Standard stator	Round hole

Medium-contact material	SS304
Stirring shaft material	Copper alloy
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Operaiton mode	Batch processing
Dimensions (mm)	215×310×730
Weight (kg)	≤10
Packaging	Carton

Features

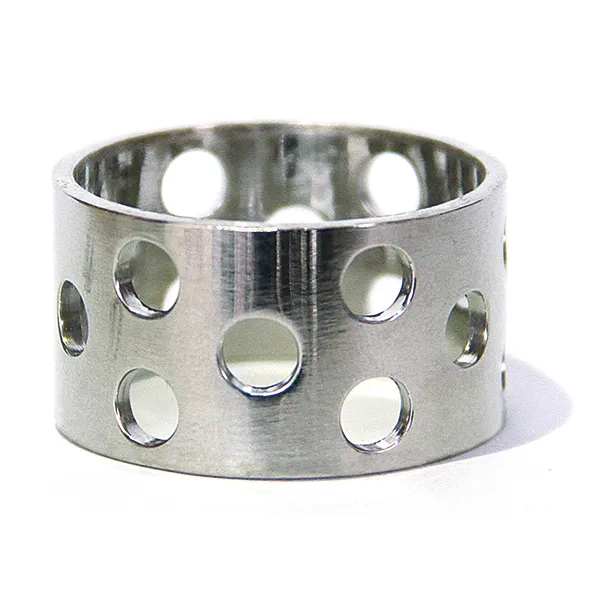

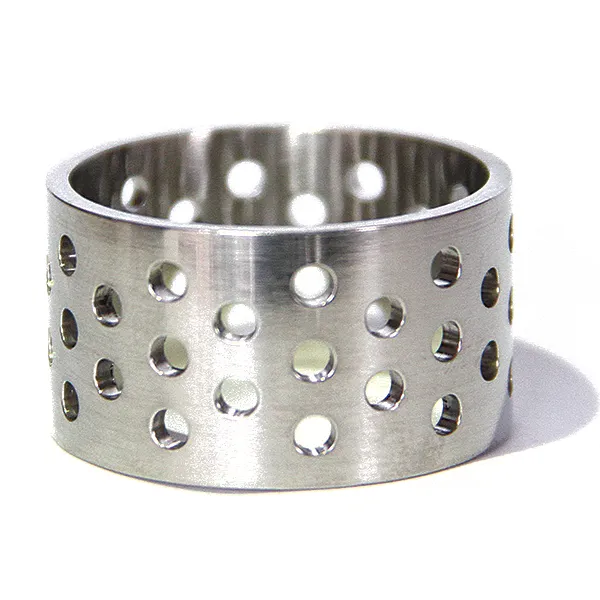

The mixer is constructed with a bearing-free design for smoother and more reliable operation. It is equipped with three sets of stators, allowing users to easily swap them according to the processing conditions and requirements to achieve the optimal results.
