Batch High Shear Mixer

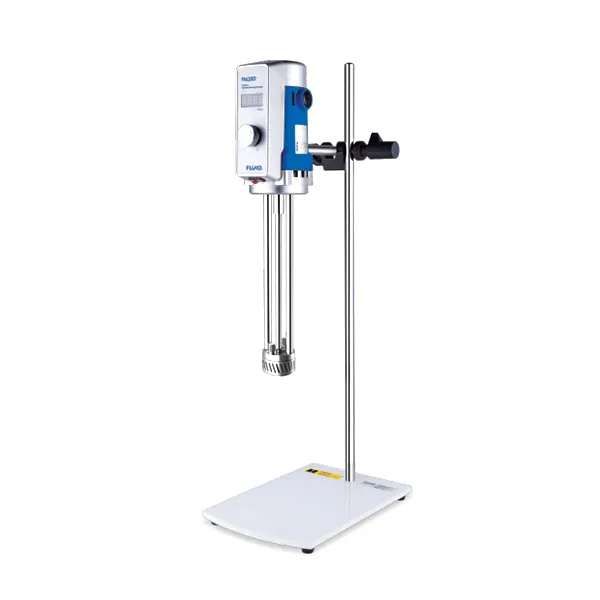

FM20D Batch High Shear Mixer

Pilot scale mixer for dispersing, emulsifying and homogenizing of medium viscosity materials

FM20D

Pilot scale mixer for dispersing, emulsifying and homogenizing of medium viscosity materials

This batch high shear mixer features variable speed control and delivers strong torque output. It comes with a combination of different agitators, offering multiple mixing functions. This makes it ideal for dispersing, emulsifying, homogenizing, and mixing medium viscosity materials and solids-containing liquids.

Key Specifications

Motor power (W) 500
Power supply 220V, 50Hz
Mixing capacity (H₂O) (ml) 150-3000
Max. viscosity (cP) 5000

Request a Quote

Specifications

Model	FM20D
Motor power (W)	500W
Power supply	220V, 50Hz
Mixing capacity (H₂O) (ml)	150-3000
Max. viscosity (cP)	5000
Speed range (rpm)	2000-14000

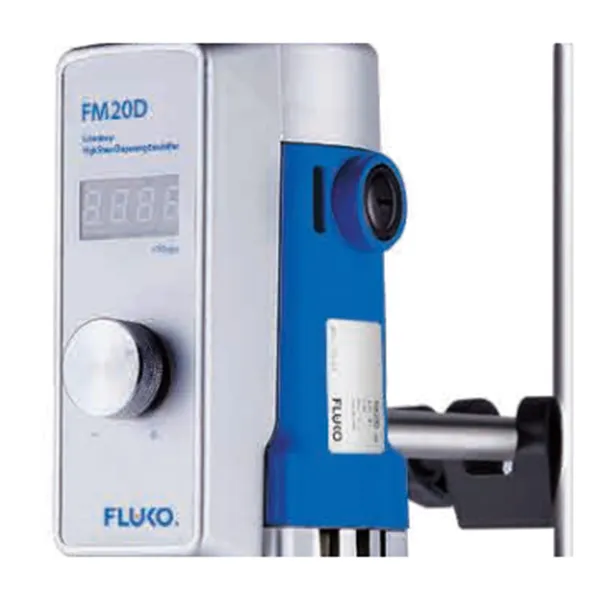

Speed display	Digital display
Speed control	Stepless
Standard stator	Slot

Medium-contact material	SS316L
Stirring shaft material	Copper alloy
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Operaiton mode	Batch processing
Work frame/stand base	Standard
Dimensions (mm)	215×310×730
Weight (kg)	≤10
Packaging	Carton

Features

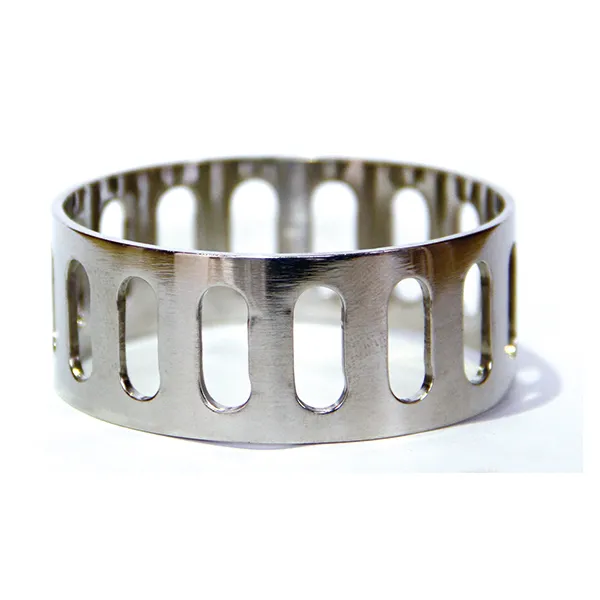

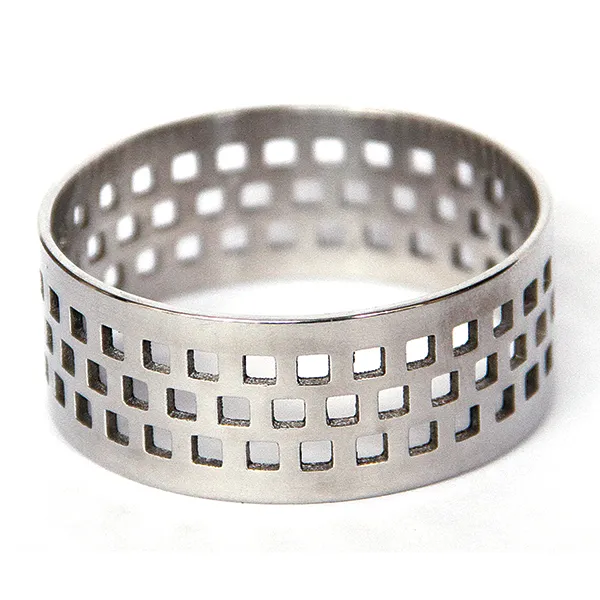

The mixer features a bearing-free structure for smoother operation. It is equipped with three sets of stators, allowing users to easily swap them according to their processing conditions and requirements to achieve optimal results.
