Batch High Shear Mixer

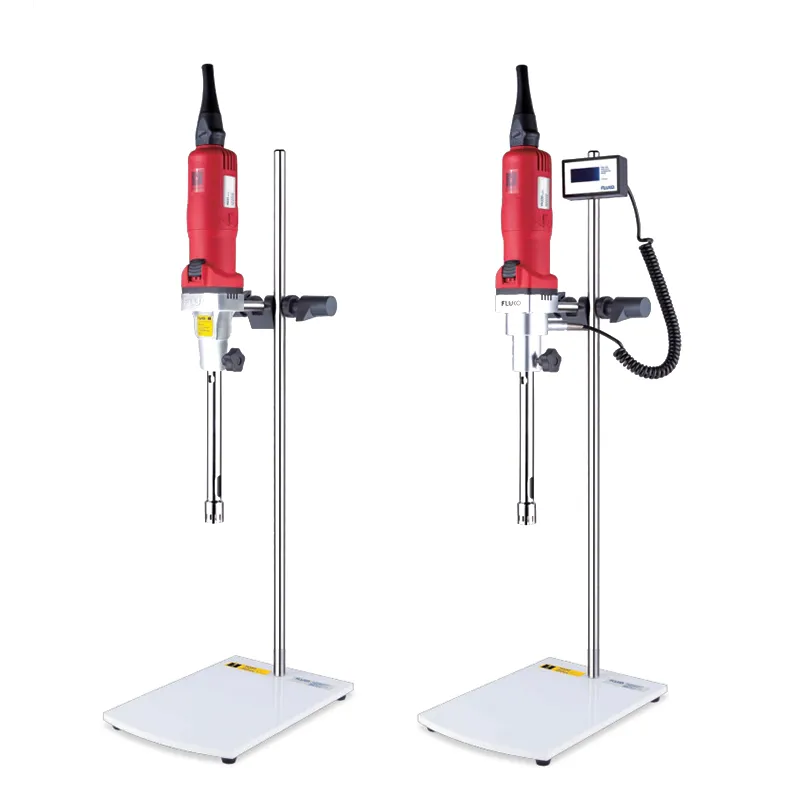

FA25/FA25D Batch High Shear Mixer

High speed high shear mixer for dispersing, emulsifying and homogenizing applications in labs

FA25/FA25D

High speed high shear mixer for dispersing, emulsifying and homogenizing applications in labs

This high shear mixer is equipped with a high-speed motor (with an optional digital display) and supports a variety of homogenizing probes. It achieves speeds of up to 28,000 RPM, with a linear velocity of up to 27 m/s. It is capable of extended operation, easily meeting the demands of rigorous dispersion and emulsification experiments. The lab mixer is suitable for various processes, including dispersion, emulsification, homogenization, wet milling, dissolution, suspension preparation, and the disruption and homogenization of plant and animal tissues.

Key Specifications

Motor power (W) 500
Power supply 220V, 50Hz
Mixing capacity (H₂O) (ml) 0.2-7000
Max. viscosity (cP) 8000

Request a Quote

Specifications

Model	FA25	FA25D
Motor power (W)	500
Power supply	220V, 50Hz
Mixing capacity (H₂O) (ml)	0.2-7000
Max. viscosity (cP)	8000
Speed range (no-load) (rpm)	10000-28000
Max. rotation speed (m/s)	27
Speed display	Scale	Digital display
Speed control	Stepless
Medium-contact material	SS316L

Stirring shaft material	PTEE
Standard dispersing tool	25F
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Operaiton mode	Batch processing
Work frame/stand base	Standard
Dimensions (mm)	215×310×730
Weight (kg)	≤7.1
Packaging	Carton

Optional Dispersing Tools

Model 6G
Model 8G
Model 10G
Model 18G
Model 18F
Model 20DG
Model 20DF
Model 25G
Model 25F
Model 25DG
Model 25DF
Model 25J
Model 25JQ
Model 25JX
Model 25T1
Model 25T2
Model 25T3
Model 25T4
Model 25T5
Model 26T6

Features

This laboratory high-speed mixing equipment features a modular structure for easy operation and adaptability. It supports different dispersing tools to handle various processing conditions and requirements.
