Batch High Shear Mixer

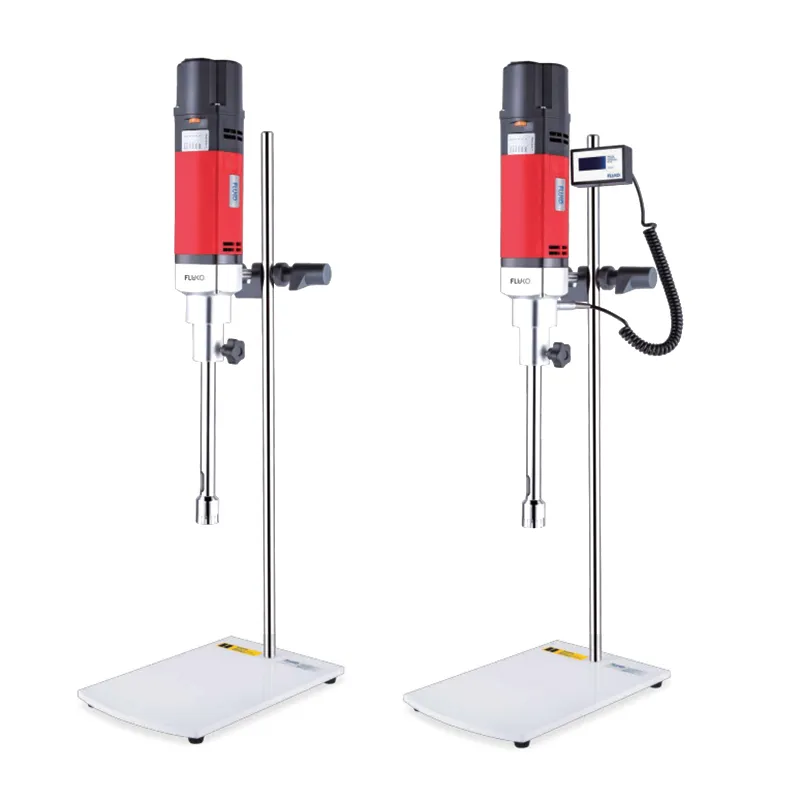

FA30/FA30D Batch High Shear Mixer

High speed high shear mixer for dispersing, homogenizing, emulsifying and mixing

FA30/FA30D

High speed high shear mixer for dispersing, homogenizing, emulsifying and mixing

This high shear mixer is equipped with a high-power and high-speed motor, reaching speeds of up to 25,000 RPM and a linear velocity of up to 35 m/s, with a maximum batch processing capacity of 10,000 ml. It features a design for high-torque performance and is compatible with various dispersing tools. The mixer has a modular structure, making it easy to operate. It is ideal for high-precision tasks such as dispersion, homogenization, emulsification, mixing, and tissue disruption delivering fast and effective performance.

Key Specifications

Motor power (W) 1050
Power supply 220V, 50/60Hz
Mixing capacity (H₂O) (ml) 0.2-10000
Max. viscosity (cP) 8000

Request a Quote

Specifications

Model	FA30
Motor power (W)	1050
Power supply	220V, 50/60Hz
Mixing capacity (H₂O) (ml)	0.2-10000
Max. viscosity (cP)	8000
Speed range (no-load) (rpm)	3500-25000
Speed display	Scale
Speed control	Stepless
Medium-contact material	SS316L

Stirring shaft material	PTFE
Standard dispersing tool	30G
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80%
Work frame/stand base	Standard
Dimensions (mm)	215×310×730
Weight (kg)	≤9.8
Packaging	Carton

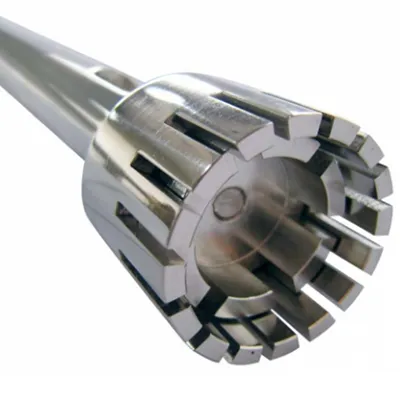

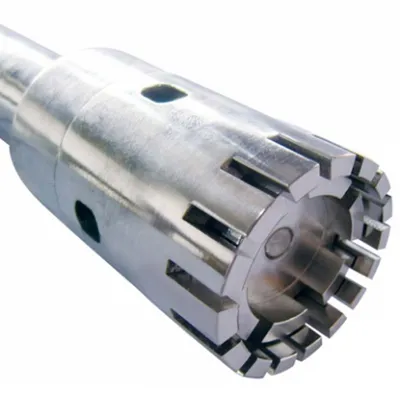

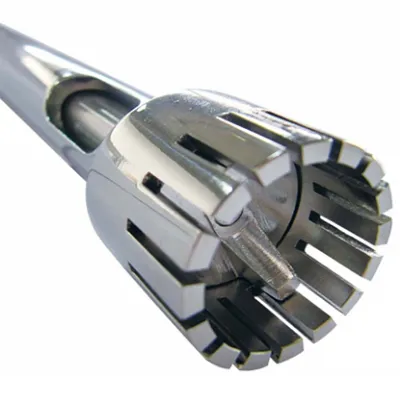

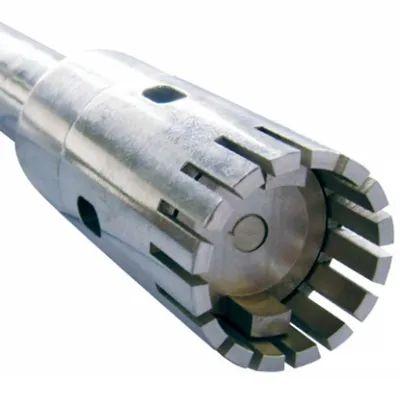

Optional Dispersing Tools

Model 30G
Model 30F
Model 30DG
Model 30DF

Features

The batch high shear mixer starts at a lower speed, making it suitable for materials that are sensitive to shear. Its compatibility with numerous probes offers a broader range of applications.
